Configure Remote Desktop

The Remote Desktop feature available in Window desktops allows you to remotely control your office computer while you are at home or traveling. This application offers tremendous flexibility by providing access to your office resources, data and applications when you are off campus. However, using this application does present additional risk to your computer, institutional data and university resources.Since Remote Desktop does present additional risks for you and the university, it is important to follow all the steps in this document. These steps will offer additional protection to prevent unauthorized access to your computer.

 *This configuration only can be performed by an Administrator of the computer.

Click Here for Windows 7 Instructions.

Click Here for Windows 10 Instructions.



Configuring Remote Desktop on Windows 7

1. Start _ Control Panel _ System

 2. Click Remote settings – if there is a User Account Control pop-up warning, “Do you want to allow the following"




 3. Verify “Allow connections from computers running any version of  Remote Desktop" is checked.



4. When it is checked, a Remote Desktop window will appear as follows:

Note: You can’t connect to a computer that's asleep or hibernating, so make
sure the settings for sleep and hibernation on the remote computer are set to never. (Hibernation isn't available on all computers.) Then click “Power Options”.

 5. In a new window, please verify that “Balanced (recommended)” plan is checked and click “Change plan settings”.





6. Click drop-down choice in “Put the computer to sleep:”, choose “Never” and press “Save changes” button.







    7. Close Power Options window.





 8. On Remote Desktop window, click “OK” button.



9. Click “Select Users…” on System Properties window.



10. On the Remote Desktop Users window, select “Add”

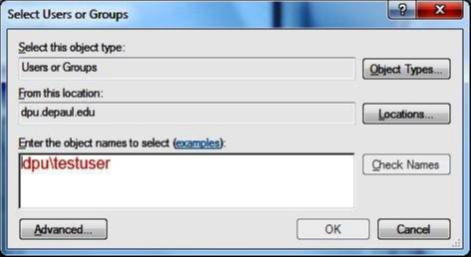

11. A new window titled “Select Users or Groups” will be displayed


12. Look for the field named “Enter the object names to select”
13. In the empty box, type in the following:
a. dpu\ and your Campus Connect username
b. Example: dpu\testuser

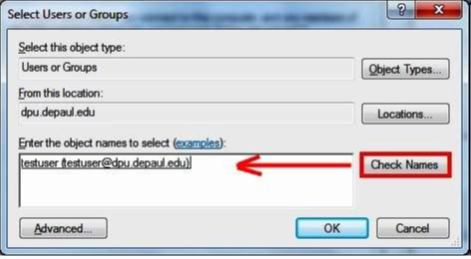

14. Press the button “Check Names”, your user name should appear as shown below




 15. Press “OK”. Note: Your name will appear in Remote Desktop Users window. Press “OK” on that window and on System Properties window.

Close Control Panel System window.


Configuring Remote Desktop on Windows 10

1. Start > Control Panel > System and Security > System


2. Click Remote settings – if there is a User Account Control pop-up warning, “Do you want to allow the following"

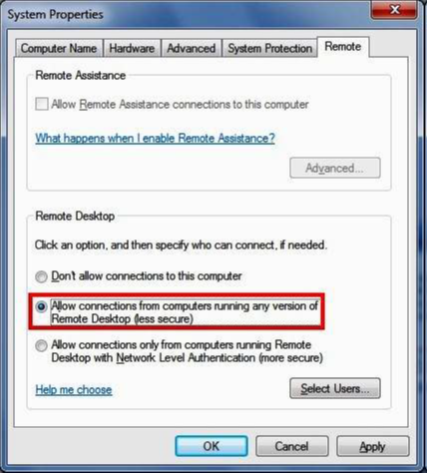

System Remote Access Option


 3. Verify “Allow connections from computers running any version of  Remote Desktop" is checked.

Allowing the Connection

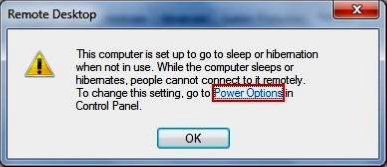

4. When it is checked, a Remote Desktop window will appear as follows:Image8.png

Note: You can’t connect to a computer that's asleep or hibernating, so make
sure the settings for sleep and hibernation on the remote computer are set to never. (Hibernation isn't available on all computers.) Then click “Power Options”.

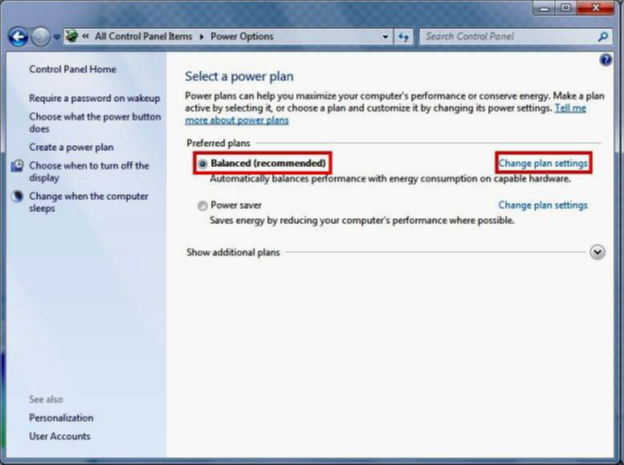

 5. In a new window, please verify that “Balanced (recommended)” plan is checked and click “Change plan settings”.


Power Settings

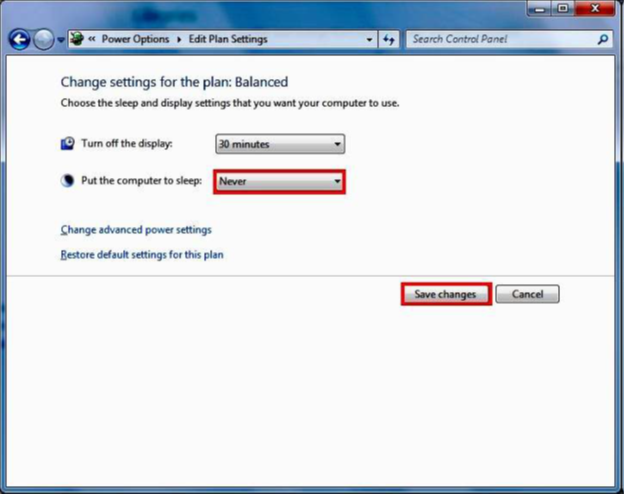

6. Click drop-down choice in “Put the computer to sleep:”, choose “Never” and press “Save changes” button.





Sleep set to never
